Filter suitable for CAT
REDX

Filter suitable for CAT

Catalog number:SKX980890RX Nr OEM:273-5711 Manufacturer:REDX
Add a review

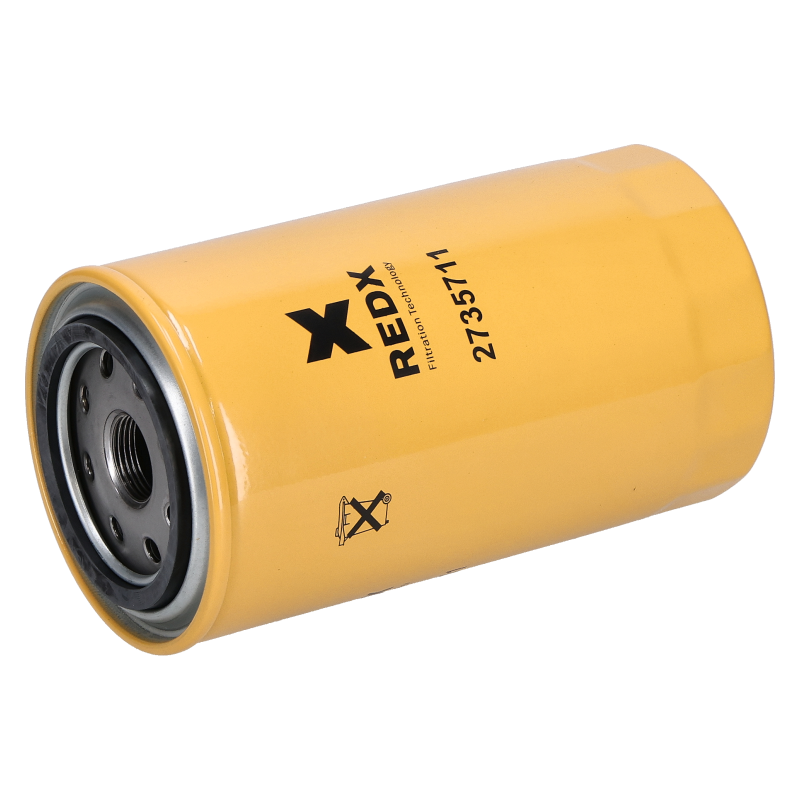

Crankcase Breather Filter suitable for CAT C4.4 C6.6 - 2735711

Technical Specification and Compatibility

Crankcase breather filter with part number 2735711 from the REDX offer. It is a specialized canister filter used in Caterpillar (CAT) machines equipped with C4.4, C6.6, and C7.1 series engines. Its task is to separate oil mist from blow-by gases, which protects the intake system from contamination and ensures compliance with environmental standards.

Part Number: 2735711
Component Type: Crankcase Breather Filter
Height: 177 mm
Outer Diameter: 93 mm
Inner Diameter (Seal): 71 mm
Thread: M22 x 1.5
Type: Spin-on
Manufacturer: REDX

REDX breather filters effectively capture oil particles from gases escaping from the crankcase. This prevents oiling of the turbocharger and intercooler, which is crucial for maintaining the efficiency of EGR-equipped engines.

Features of REDX 2735711 Filter

Environment & Engine Protection: Reduces harmful emissions and prevents carbon buildup in the intake system.
Spin-on Design: Convenient metal canister form with M22x1.5 thread allows for quick replacement without dirty hands and oil contact.
High Efficiency: High surface area filter media ensures free gas flow while effectively separating oil.
Versatility: Fits a wide range of CAT machines, from wheeled excavators and loaders to dozers and rollers.

Application in CAT machinery

Category Models
Wheeled Excavators M313D, M315D, M315D2, M316D, M317, M317D2, M318, M318D, M318D MH, M320, M320D2, M322D, M322D MH, M322D2, M322D2 MH, M324D2 MH
Wheel Loaders 910K, 914, 914G, 914G2, 914K, 920, 920K, 924, 924H, 924HZ, 924K, 926, 928H, 928HZ, 930, 930H, 930K, 938, 938H, 938K, 950L, 950M, 962, 962L, 962M
Track-Type Tractors D6K LGP, D6K XL, D6N
Track Loaders 953D, 963D
Toolcarriers IT14G, IT14G2, IT38H
Compactors 814, 814K, 815, 815K, 816, 816K
Other Applications Generators (LC30XX, C7.1 POWER SYS), Motor Graders (120M), Forestry (559), Marine (C6.6)
Engines C4.4, C6.6, C7.1

Filter is compatible with C4.4 and C6.6 engines. Before purchase check thread (M22x1.5) and dimensions.

Related Parts and Hardware

The breather filter is part of the lubrication/ventilation system. When replacing it, it is worth checking the condition of engine oil filters and air filters to ensure comprehensive engine protection.

⚠️ Operational Warning

A clogged breather filter causes pressure buildup in the engine crankcase. This can lead to oil leaks through seals (e.g., crankshaft seals) and increased oil consumption. Regular replacement of this filter is often overlooked but is crucial for engine tightness.

Part Role in the Machine and Failure Diagnostics

Filter 2735711 vents the crankcase and separates oil.

  • › Oil leaks (pressure increase due to clogged breather).
  • › Oil in intake/turbo (faulty separation).
  • › Excessive smoking (oil combustion).
  • › Engine covered in oil.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Interval: Replace the breather filter according to the machine's maintenance manual (usually every 500 or 1000 hours), do not wait for failure symptoms.
  2. Gasket: Before screwing on, lubricate the filter gasket with clean oil. This will prevent it from twisting and facilitate later removal.
  3. Tightening: Tighten by hand until snug, then slightly with a wrench (with care) to ensure tightness but not crush the gasket.

Technical FAQ and Trivia

What is "blow-by"?

"Blow-by" are combustion gases that escape from the combustion chamber past the piston rings into the crankcase. They must be vented (via the breather), and the breather filter cleans them of oil mist before re-introduction into the intake or atmosphere.

Why is the filter so large?

The 177 mm height results from the need to provide a large surface area of coalescing material. A filter that is too small would quickly become saturated with oil, blocking gas flow and causing pressure buildup.

Ecology trivia

In older engines, the breather was simply a tube vented under the engine ("open breather"), dripping oil onto the ground. Modern systems with filters like 2735711 (closed CCV) are a requirement of emission standards to prevent oil from entering the environment.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX980890RX
273-5711
0.00 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
DOZER
EXCAVATOR
GENERATOR
TELESCOPIC HANDLER
WHEELED LOADER
OEM NUMBERS
SAO 6110 / SAO6110 / 10000-05597 / 2654A104 / 2735711 / 273-5711
ENGINE
CAT
PERKINS
OUTER DIAMETER (MM)
93
INNER DIAMETER (MM)
71
HEIGHT (MM)
177

Specific References

MPN
273-5711
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Filter suitable for CAT

Catalog number: SKX980890RX
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

44.90 zł

net price
36,50 zł
Available in large quantity Temporarily unavailable
36,50 zł
net price

44.90 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 4 points, it gives you 1.60 zł
  • Lowest price from 30 days before the discount: 44.90 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CAT
    MACHINE TYPE
    DOZER
    EXCAVATOR
    GENERATOR
    TELESCOPIC HANDLER
    WHEELED LOADER
    OEM NUMBERS
    SAO 6110 / SAO6110 / 10000-05597 / 2654A104 / 2735711 / 273-5711
    ENGINE
    CAT
    PERKINS
    OUTER DIAMETER (MM)
    93
    INNER DIAMETER (MM)
    71
    HEIGHT (MM)
    177
