4CX
The return pipe is a key component of the hydraulic system that carries oil from the valve block back to the tank. If you notice hydraulic oil leaks, especially around the connections or on the pipe bends, see cracks from vibration or corrosion, these are classic signs of its failure. A leaking pipe leads to a constant loss of expensive oil, environmental contamination, and most importantly, can cause the oil level to drop to a dangerous state, risking seizure of the hydraulic pump.
Before loosening any hydraulic component, you must relieve the pressure by moving all controls several times with the engine off.
Installing a new pipe with old, deformed o-rings is a guarantee of a leak. Always fit new seals on both ends of the pipe.
Ensure that all clamps and mountings for the pipe are intact and securely tightened. Excessive vibration is the main cause of hydraulic pipe failure.
After installation, top up the oil level in the tank using clean, dedicated hydraulic oil, such as HYPTRON. Bleed the system by operating all functions several times.
Answer: First, you should replace the sealing o-rings. However, if the flange surface on the pipe is scratched, corroded, or cracked, replacing the seal alone will not help, and the entire pipe must be replaced.
Question: Can I weld a cracked hydraulic pipe?Answer: It is highly not recommended. Welding hydraulic pipes requires great precision and cleanliness, and vibrations during machine operation often lead to the weld cracking again.
Question: Why did my new pipe crack quickly?Answer: The most common causes are damaged engine or transmission mounts that fail to dampen vibrations. Another reason could be missing or loose clamps that should secure the pipe to the machine's frame.
💪
High-Grade Steel
Resistant to cracking and vibration
🎯
Perfect Seal and Fit
No leaks and easy installation
💨
Optimal Oil Flow
Protection against overheating
The accuracy and quality of materials guarantee long and trouble-free use without the need for frequent replacement.
The pipe is fully adapted to work with original JCB components, ensuring a consistent and reliable repair.
An OEM quality product ensures the performance of an original part at a much better price.
If you are unsure whether the selected product is suitable for your machine, contact us and we will help you choose the right part and provide practical advice in minutes.
Data sheet
Specific References
Manufacturer
Responsible person
See also similar products

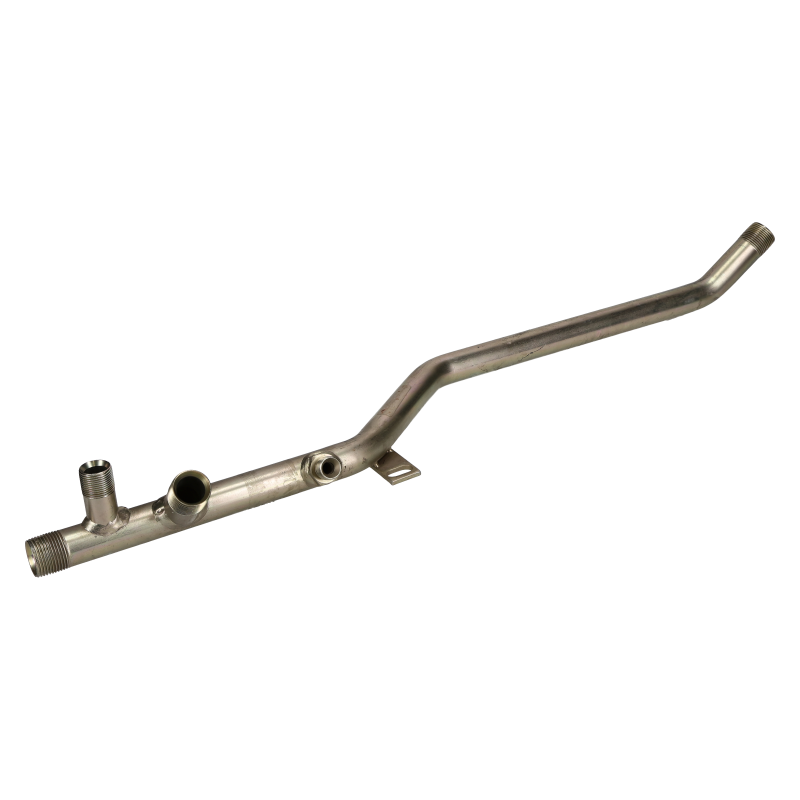

Hydraulic oil return pipe, suitable for JCB 4CX backhoe loaders with a piston hydraulic pump.
