Fuel pump suitable for CASE 580 / 590 / 695
NEXGEN

Fuel pump suitable for CASE 580 / 590 / 695

Catalog number:SK051180A Nr OEM:2830266 Manufacturer:NEXGEN
Add a review

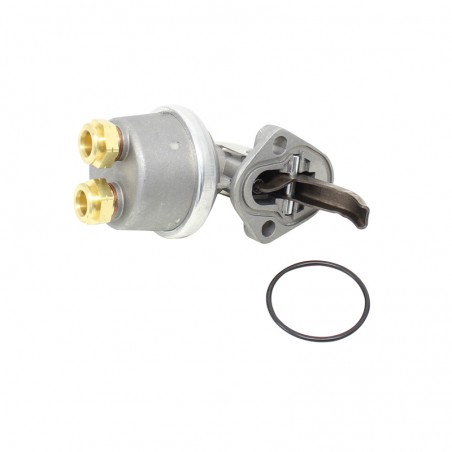

Fuel Lift Pump for CASE New Holland IVECO NEF - 2830266

Technical Specification and Compatibility

High-performance 2830266 fuel feed pump (transfer pump) by GX-AFTER. This is a mechanical diaphragm pump with a manual lever, dedicated to modern IVECO NEF and Cummins engines used in CNH machinery (Case, New Holland, Steyr, Kobelco). A key low-pressure system component, responsible for delivering fuel from the tank to the injection pump.

Part Number: 2830266
Alternative Number: 051180A
Type: Mechanical Lift Pump
Mounting: 2-bolt flange
Hole Spacing: 44 mm
Compatible Engines: IVECO NEF (445/667), Cummins 4BT/6BT
Manufacturer: GX-AFTER (NEXGEN)

GX-AFTER supplies fuel components that meet rigorous OEM standards. A reinforced diaphragm and precise lever mechanism guarantee stable fuel pressure and reliable machine starting in all conditions.

Features of GX-AFTER 2830266 Pump

CNH Versatility: Fits hundreds of tractor and construction machine models from Case, New Holland, Steyr, Fiat-Kobelco with NEF engines.
Manual Primer: Integrated lever allows manual fuel priming, essential for bleeding the system after filter replacement or running dry.
Standard Mounting: Flange with two holes spaced at 44 mm ensures easy replacement without modifications.
Durability: Corrosion-resistant body and diaphragm adapted to work with modern diesel fuels.

Application in machinery

Brand Machine Type / Series
New Holland Backhoe Loaders: LB90.B, LB110.B, LB115.B, B90B, B100, B110, B115
Tractors: T4000, T5000, T6000, TD5000, TL-A, TS-A, TN-A, TM7000
Loaders: LM, W110, W130
Excavators: E135, E145, E175, E215
CASE IH / Construction Tractors: JX, JXU, Maxxum 100-140, MXU, Quantum
Backhoe Loaders: 580 Super R, 590 SR, 695 SR (IVECO engines)
Loaders: 430, 440, 445, 450
Komatsu Backhoe Loaders: WB93R-5, WB97S-5, WB97R-5 (with IVECO engines)
Steyr Kompakt 485-4095, Profi 4100-6140

The pump fits IVECO NEF engines (4 and 6 cylinders) and some Cummins versions. Check the bolt spacing (44mm).

Related Parts and Hardware

Installation requires a new gasket (o-ring) between the pump and engine block to prevent oil leaks. We also recommend replacing the fuel filter during fuel system service.

⚠️ Safety Warning

A leaking feed pump can allow fuel into the engine oil, drastically reducing lubrication and risking engine seizure. Check oil level and smell regularly.

Part Role in the Machine and Failure Diagnostics

Pump 2830266 is responsible for transporting fuel from the tank to the high-pressure pump.

  • › Engine stalls under load (insufficient pump flow).
  • › Starting problems (fuel drains back to tank - damaged valves).
  • › Fuel leak through breather hole in pump body (ruptured diaphragm).
  • › No response to manual pumping.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Positioning: Before mounting, ensure the camshaft lobe is in the "low" position. If the new pump doesn't sit flush, rotate the engine shaft. Do not force it with screws!
  2. Cleanliness: Clean the contact surface on the engine block of old gasket material. Use a new gasket.
  3. Bleeding: After connecting lines, use the manual lever to fill the filter and injection pump with fuel before cranking the starter.

Frequently Asked Questions (FAQ)

What engines does it fit?

Mainly IVECO NEF family engines (445, 667) and their CNH equivalents, as well as some Cummins 4BT/6BT versions. Hole spacing is 44mm.

Does it have a hand pump?

Yes, this model is equipped with a lever for manual fuel pumping.

What is the bolt spacing?

The mounting hole spacing is 44 mm.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.
