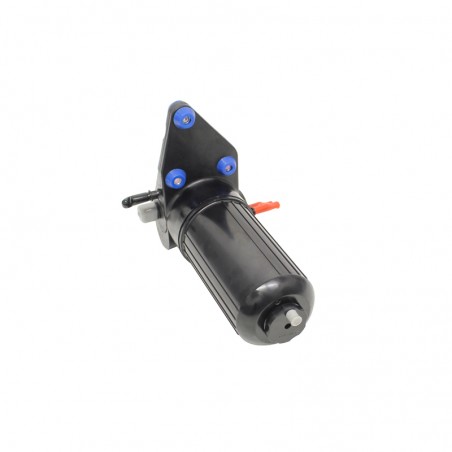

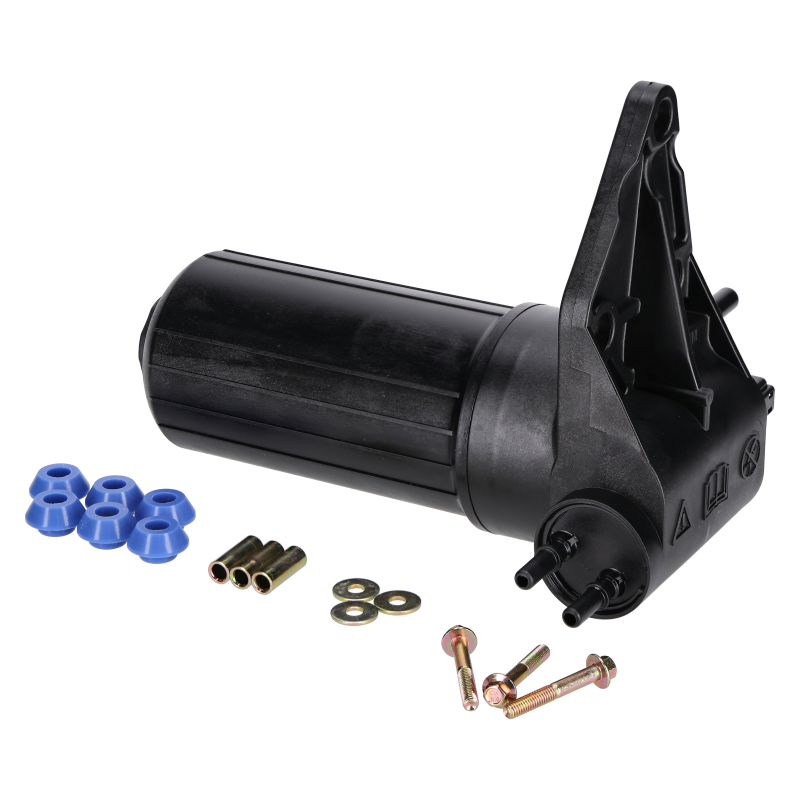

Function: electric fuel lift pump with fuel filter housing / water separator for machines fitted with Perkins 1104 TIER 2 (RE/RG) engines. It provides a constant fuel feed to the injection system, improving starting and steady operation under load.
| Brand | Models / Types (notes) |
|---|---|
| JCB | 2CX, 3CX, 4CX — Perkins 1104 (TIER 2 RE/RG) ROBOT 1110/190, TM300 Loadall: 520-50, 527-55, 535-95, 540 (among others) |
| Perkins | Engines: 1104C-44, 1104D-44T (+ other 1104 series) |
| Massey Ferguson | Tractors: 471, 5425, 5435 (+ others) |
| CASE / McCormick | Selected models with Perkins 1100 engines |
| Caterpillar | CS323C, TH210 (+ others) — compactors, handlers |
| ASV / Terex | RCV, PT100 — track equipment |
| Bobcat | Selected models with Perkins 1100 engines |
Unsure about fitment? Share your machine serial or engine type and we’ll confirm.
When replacing the lift pump:
Feeds fuel from the tank through the filter/water separator to the injection pump, maintaining a steady supply.
Symptoms: hard starting, hesitation under load, air ingress, leaks at hose barbs.
GX-AFTER combines fitment and durability — consistent flow rate, robust housing and easy drop-in installation in the filter head.
Not always. Common causes also include a clogged fuel filter, a faulty relay/fuse, or wiring issues. With ignition ON you should hear a faint pump hum. If not, check supply voltage and ground first.
Electric vs mechanical lift pump — what’s the difference?Electric pumps provide a steady fuel feed regardless of engine RPM and make bleeding easier. Mechanical pumps (older machines) are engine-driven and their output depends on RPM.
Does this pump fit JCB DieselMax engines?No. 17/927800 is used with Perkins engines (RE/RG, 1104). JCB DieselMax-equipped machines require a different pump.
Key specs for this model?12 V DC supply, approx. 140 L/h flow rate, integrated filter head/water separator, cast + plastic housing.
Are 17/927800, 17/919300 and 334/D8880 interchangeable?Yes — these are the most common cross-references for the same application (Perkins 1104, TIER 2).
Can running on low fuel damage the pump?Yes. Prolonged operation on reserve promotes air ingestion and pump seizure. Avoid low-fuel operation and replace the fuel filter at recommended intervals.
🛡️
Stable Flow
Reliable fueling to the injection system
🎯
OEM Fit
Direct fit, proven references
📦
Ready to Install
Filter head & separator included
Need help with fitment? Contact us — we’ll match the right part and advise on installation.
Data sheet
Specific References
Manufacturer
Responsible person
See also similar products






Suitable for JCB 3CX 4CX backhoe loaders and telehandlers.
