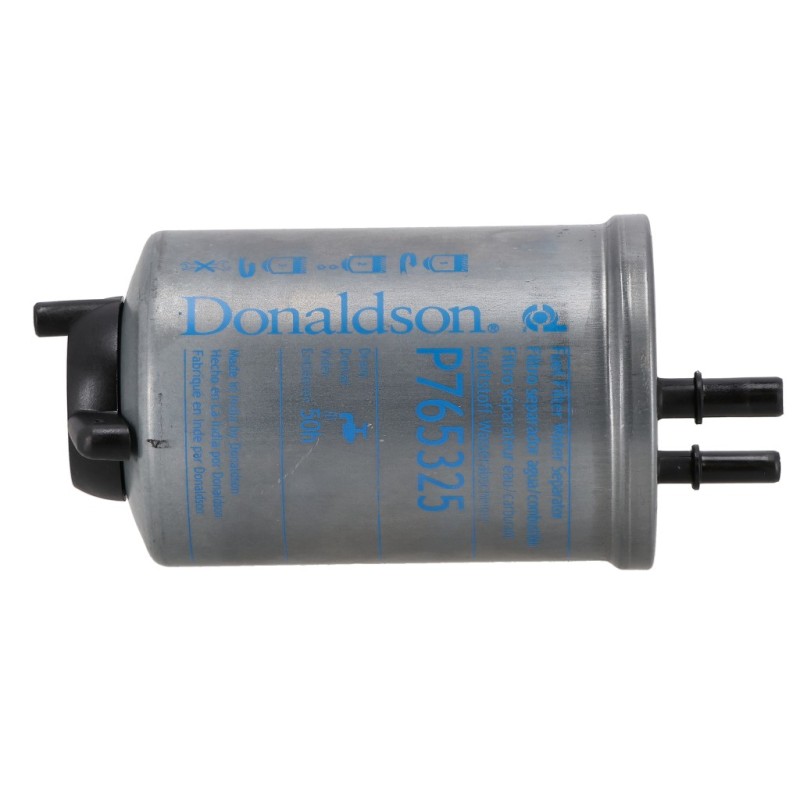

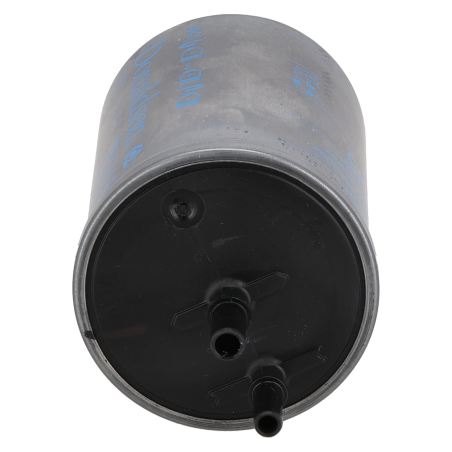

In-Line Fuel Filter Donaldson - P765325
Donaldson

In-Line Fuel Filter Donaldson - P765325

Catalog number:SKX1004738C1 Nr OEM:P765325 Manufacturer:Donaldson
Add a review

Fuel Filter In-Line suitable for JCB 3CX 4CX - 320/A7170 (Donaldson)

Technical Specification and Compatibility

In-line fuel filter with part number P765325 by the renowned Donaldson brand, equivalent to OEM number 320/A7170 (and 320/07394). It is a high-efficiency flow-through filter used in JCB machines such as 3CX/4CX backhoe loaders, telehandlers, and agricultural machinery. Its task is to effectively clean diesel fuel from solid contaminants before feeding it to the pump and injectors.

JCB OEM Number: 320/A7170
Manufacturer Number: P765325 (Donaldson)
Alternative Numbers: 320/07057, 320/07394, 320/07155, WK9036, PFF5677
Component Type: In-Line Fuel Filter
Total Length: 179 mm (7.05 inch)
Outer Diameter: 80 mm (3.15 inch)
Inlet Diameter: 5/16 inch
Outlet Diameter: 3/8 inch
Filtration Efficiency: 99% at 5 microns
Filter Media: Cellulose

Donaldson filters are at the forefront of filtration technology. The P765325 model offers very high efficiency (5 microns), which is crucial for protecting modern diesel engines against microscopic particles that can damage the injection system.

Features of Donaldson P765325 Filter

In-Line Design: Simple, closed construction allows easy mounting on fuel lines using hose clamps, eliminating the need for a filter head.
Different Ports: The filter has a 5/16" inlet and a 3/8" outlet, which prevents reverse installation and ensures correct fuel flow direction.
Cellulose Media: High-quality cellulose cartridge effectively traps solid impurities, sediments, and some moisture, improving combustion quality.
High Efficiency: Filtration at the 5-micron level is the standard required for thorough fuel cleaning in modern construction machinery.

Application in machinery

Brand / Type Models
JCB Backhoe Loaders 2CX, 2CX CITY, 2CX S4, 3CX 4T, 3CX 4T ECO, 3DX, 4CX
JCB Telehandlers 524-50, 526 S, 526-55, 526-56, 527-55, 528-70, 531-70, 531-70 AGRI, 533-105, 535-95, 535-125, 535-125 HVB, 535-140, 535-140 HIVIZ, 535 V 125, 536-60, 536-70 AGRI X TRA, 540-170, 540-200, 541-70 AGRI, TM 3103
JCB Mini/Midi/Other 8020 CTS, 8025 ZTS, ROBOT 190 T, ROBOT 225 T, 225 T, 260 T, 320 T, 406 T4, 411 HT, 926, 926-4 RM, 940, VM 115 HD VIBROMAX
JCB Generators G 60 RX, G 80 RX, G 100 RS, G 100 RX
Other Brands VOLVO MC 115 C, THWAITES (MACH 666, 764, 766), FOGO (FDR 60/80 B3S), GILLISON (GVF 5000/6000/8000)
JCB Engines 444 N2, 444 NA, 444 NG, 444 T1, 444 T2, 448 TG 60, 448 TG 72

Filter fits machines requiring part number 320/07394C1. Check connection diameters before purchase.

Related Parts and Hardware

The in-line filter is disposable. It is mounted on flexible hoses using hose clamps. When replacing, it is worth checking the condition of fuel lines for cracks.

⚠️ Installation Warning

This filter has a flow direction and different port diameters (5/16" inlet, 3/8" outlet). Reverse installation is difficult due to diameter differences, but forcing hoses can lead to damage or leaks. Always pay attention to the flow arrow on the housing!

Part Role in the Machine and Failure Diagnostics

Filter 320/A7170 cleans fuel flowing through the supply line.

  • › Engine stalling (blockage in filter).
  • › Power loss (restricted fuel flow).
  • › Visible debris in transparent housing (needs replacement).
  • › Air entering system (leak at clamps).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Arrow: There is an arrow on the filter housing indicating the direction of fuel flow (from tank to engine). Reverse installation will block the flow.
  2. Clamps: Use good quality hose clamps. Old, rusted clamps may not seal the connection, causing air intake.
  3. Cleanliness: When removing the old filter, be careful not to let dirt from the hoses get into the clean side of the system.

Technical FAQ and Trivia

Why do the ports have different diameters?

The diameter difference (5/16" inlet and 3/8" outlet) is a safeguard against incorrect installation (Poka-Yoke). This prevents the filter from being connected in reverse, which could result in lack of filtration or flow blockage.

Is this a main filter?

In some machines, it acts as a main filter, but it is often used as a pre-filter or additional filter on the supply line, working with a water separator.

Trivia about In-Line filters

In-Line filters are extremely simple in design but very effective. Thanks to the transparent housing (in some versions) or ease of disassembly, they allow for a quick visual assessment of the quality of fuel flowing from the tank.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX1004738C1
P765325
0.42 kg

Data sheet

SUITABLE FOR
JCB
OEM NUMBERS
320/A7170 / 320/07057 / 320/07394 / 320/07155
PFF5677
SP-1293 / SP 1293 / SP1293
WK 9036 / WK9036
OUTER DIAMETER (MM)
80
LENGTH (MM)
179

Specific References

MPN
P765325
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

In-Line Fuel Filter Donaldson - P765325

Catalog number: SKX1004738C1
Title for your review*
Your review*
Your name*
Your email*
gross price

146.37 zł

net price
119,00 zł
Available in large quantity Temporarily unavailable
119,00 zł
net price

146.37 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 12 points, it gives you 4.80 zł
  • Place an order within 07h 59m 47s And we will send your order today

    Lowest price from 30 days before the discount: 146.37 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    OEM NUMBERS
    320/A7170 / 320/07057 / 320/07394 / 320/07155
    PFF5677
    SP-1293 / SP 1293 / SP1293
    WK 9036 / WK9036
    OUTER DIAMETER (MM)
    80
    LENGTH (MM)
    179
