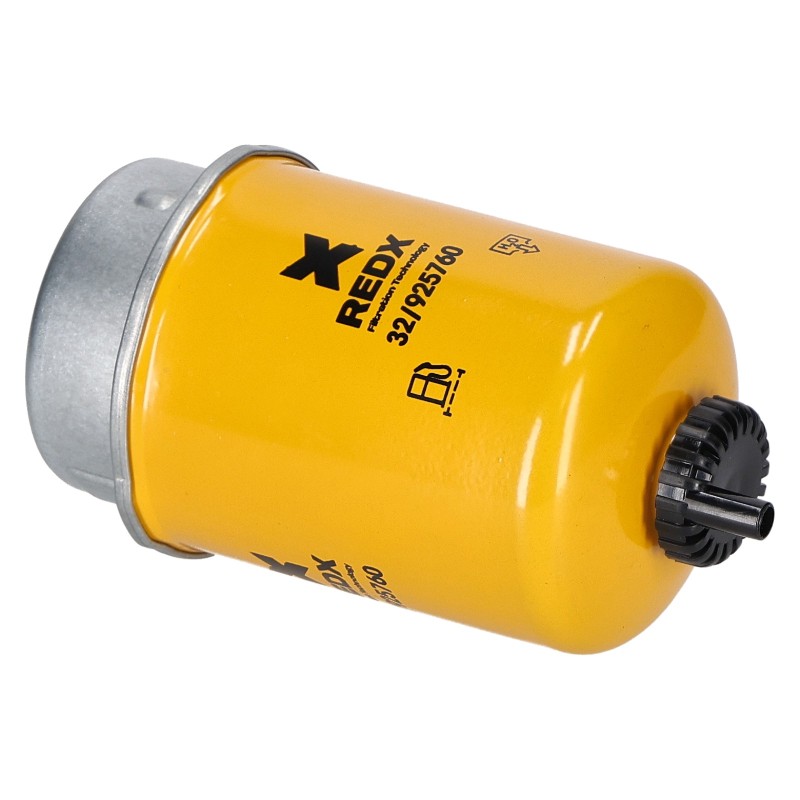

Fuel filter, water separator suitable for the JCB JS excavator
REDX

Fuel filter, water separator suitable for the JCB JS excavator

Catalog number:SKX821344RX Nr OEM:32/925760 Manufacturer:REDX
Add a review

Fuel Water Separator Filter JCB JS - 320/A7125

Technical Specification and Compatibility

Fuel water separator filter with part number 320/A7125 from the REDX offer. This is a high-quality filter element, dedicated to JCB JS series tracked and wheeled excavators (Auto and Tier 2/3/4 models) as well as modern mini excavators, telehandlers, and forklifts. The filter effectively removes water and contaminants, protecting the injection system from failure.

Part Number: 320/A7125
Alternative Number: 32/925760
Component Type: Water Separator Element
Height: 155 mm
Outer Diameter: 88.69 mm
Inner Diameter: 23 mm
Filter Type: Element
Manufacturer: REDX

REDX filters are designed to meet the requirements of modern diesel engines. Advanced filter media ensures effective water coalescence, which is crucial for protecting pumps and injectors from corrosion.

Features of REDX 320/A7125 Filter

Effective Separation: The special structure of the filter material separates water from fuel, allowing it to collect in the sediment bowl for later removal.
Reinforced Construction: The filter is resistant to collapsing under vacuum pressure and vibrations generated by the excavator engine.
Precise Dimensions: Height 155 mm and diameter 88.69 mm guarantee a perfect fit to the filter housing, preventing leaks (so-called bypass).
Fuel System Protection: Traps solid contaminants and water, extending the life of the high-pressure pump and injectors.

Application in JCB machinery

Machine Type Models
Mini Excavators (New Gen) 100C-1, 100C-2, 15C-1, 16C-1, 19C-1, 25Z-1, 26C-1, 35Z, 35Z-1, 36C-1, 37C, 48Z-1, 50Z-1, 50Z-2, 51R-1, 55Z-1, 56Z-2, 57C-1, 60C-2, 65R-1, 67C-1, 85Z-1, 85Z-2, 86C-1, 86C-2, 90Z-1, 90Z-2
Mini Excavators (8000 Series) 8085 ZTS, 8013, 8014CTS, 8015, 8016CTS, 8018CTS, 8018, 8020CTS, 8025ZTS, 8026CTS, 8029CTS, 8030ZTS, 8035ZTS, 8040ZTS, 8045ZTS, 8050RTS, 8050ZTS, 8055RTS, 8055ZTS, 8065RTS
Forklifts (Teletruk) 30-19D-2WD, 30-19D-AG, 35-23D-2WD, 35-26D-4WD
Backhoe Loaders 3CX COMPACT (10, 10L5WH, 10L5WL, 10L5WM, 12, 12L5WH, 12L5WL, 12L5WM)
Wheel Loaders 407, 407 SV, 407 T4, 409, 409 SV, 409 T4, TM180, TM180 SV, TM180 T4 A, TM220, TM220 SV, TM220 T4 A
Telehandlers (Loadall) 505-20TC, 525-60AG, 525-60
Tracked Excavators (JS) JS110 AUTO, JS115, JS115 AUTO, JS115 TIER 4, JS115 DEMOLITION, JS130, JS130 AUTO, JS130 LONG CARRIAGE, JS130 LONG CARRIAGE PLUS, JS130 LONG CARRIAGE DEMOLITION, JS130 LONG CARRIAGE TIER 4, JS140, JS145 AUTO, JS145 HEAVY DUTY, JS145 LONG CARRIAGE, JS145 LONG CARRIAGE USA, JS145 LONG CARRIAGE TIER 4, JS145 LONG CARRIAGE DEMOLITION, JS145 LONG CARRIAGE TRIPLE ARTICULATED BOOM, JS160, JS160 AUTO, JS160 TIER 3, JS160 LONG CARRIAGE, JS160 LONG CARRIAGE BRAZIL, JS160 LONG CARRIAGE TIER 4, JS160 LONG CARRIAGE HIGH REACH CHINA, JS160 LONG CARRIAGE TRIPLE ARTICULATED BOOM, JS160 NARROW LONG CARRIAGE, JS160 NARROW LONG CARRIAGE TIER 4, JS160 NARROW LONG CARRIAGE TRIPLE ARTICULATED BOOM, JS180, JS180 AUTO, JS180 TIER 3, JS180 LONG CARRIAGE, JS180 LONG CARRIAGE TIER 4, JS180 LONG CARRIAGE TRIPLE ARTICULATED BOOM, JS180 LONG REACH TIER 4, JS180 NARROW LONG CARRIAGE, JS180 NARROW LONG CARRIAGE TIER 4, JS190, JS190 TIER 3, JS190 LONG CARRIAGE TIER 4, JS190 NARROW LONG CARRIAGE TIER 4, JS200, JS200 LONG CARRIAGE BRAZIL, JS200 LONG CARRIAGE TIER 2, JS200 LONG CARRIAGE TIER 4, JS200 NARROW CARRIAGE TIER 4, JS200 NARROW LONG CARRIAGE TIER 2, JS200 STANDARD TIER 2, JS200 STANDARD CARRIAGE TIER 4, JS210, JS210 LONG CARRIAGE TIER 4, JS210 NARROW CARRIAGE TIER 4, JS220, JS220 HEAVY DUTY, JS220 LONG REACH, JS220 EXTRA DUTY, JS220 LONG CARRIAGE TIER 2, JS220 LONG CARRIAGE TIER 4, JS220 LONG REACH TIER 2, JS220 LONG REACH TIER 4, JS220 LONG XTRA DUTY TIER 4, JS220 NARROW CARRIAGE TIER 4, JS220 NARROW EXTRA DUTY TIER 4, JS220 STANDARD TIER 2, JS220 STANDARD CARRIAGE TIER 4, JS220 STANDARD XTRA DUTY TIER 4, JS235 HEAVY DUTY, JS235, JS235 HEAVY DUTY TIER 4, JS240, JS240 AUTO, JS240 LONG CARRIAGE TIER 4, JS240 NARROW LONG CARRIAGE TIER 4, JS240 STANDARD CARRIAGE TIER 4, JS260, JS260 AUTO, JS260 EXTRA DUTY AUTO, JS260 LONG CARRIAGE TIER 4, JS260 LONG REACH TIER 4, JS260 LONG XTRA DUTY TIER 4, JS260 NARROW LONG CARRIAGE TIER 4, JS260 NARROW XTRA DUTY TIER 4, JS260 STANDARD CARRIAGE TIER 4, JS260 STANDARD XTRA DUTY TIER 4, JS290, JS290 EXTRA DUTY, JS330, JS330 AUTO, JS330 LONG CARRIAGE TIER 4, JS330 LONG REACH TIER 4, JS330 LONG XTRA DUTY TIER 4, JS330 NARROW LONG CARRIAGE TIER 4, JS330 NARROW XTRA DUTY TIER 4, JS330 EXTRA DUTY, JS330 EXTRA DUTY AUTO, JS360, JS360 LONG REACH USA, JS360 EXTRA DUTY, JS360 LONG CARRIAGE TIER 4, JS360 LONG XTRA DUTY TIER 4, JS360 NARROW LONG CARRIAGE TIER 4, JS360 NARROW XTRA DUTY TIER 4, JS460, JS460 TIER 2, JS81, JZ140, JZ140 HEAVY DUTY, JZ140 TIER 4, JZ140 WASTE MASTER, JZ235, JZ255, JZ70
Wheeled Excavators (JS Wheeled) JS130 WHEELED, JS130 WHEELED TIER 3, JS130 WHEELED PERKINS LOW EMISSIONS, JS130 WHEELED TIER 2 USA, JS145 WHEELED, JS145 WHEELED MONOBOOM, JS145 WHEELED TIER 3, JS145 WHEELED TIER 4, JS145 WHEELED TRIPLE ARTICULATED BOOM, JS145 WHEELED HIGH RISE CAB, JS145 WHEELED HIGH RISE TIER 4, JS145WT TRIPLE ARTICULATED BOOM TIER 4, JS145 WHEELED TIER 2 USA, JS160 WHEELED, JS160 WHEELED PERKINS LOW EMISSIONS, JS160 WHEELED TIER 2, JS175 WHEELED, JS175 WHEELED AUTO, JS175 WHEELED TIER 3, JS175 WHEELED TIER 2 USA, JS200 WHEELED, JS200 WHEELED PERKINS LOW EMISSIONS, JS200 WHEELED TIER 3, JS200 WHEELED TIER 2, HYDRADIG 110W, HYDRADIG WASTEMASTER T4 FINAL, HYDRADIG 110 WASTEMASTER TIER 4, HYDRADIG TRIPLE ARTICULATED BOOM T4 FINAL, HD110WT SV, HYDRADIG 110 TRIPLE ARTICULATED BOOM TIER 4, HD110WTPSV

Before purchasing, please verify dimensions: height 155 mm, outer diameter 88.69 mm.

Related Parts and Hardware

The filter is supplied as a replacement element. We also recommend checking the condition of the sediment bowl (glass) and replacing the fine fuel filter (engine mounted) during fuel system service.

⚠️ Operational Warning

Water in fuel is the main cause of injection pump and injector failures. If the water separator is full or the filter is clogged, water can enter the engine, causing costly damage. Regularly check the sediment bowl and replace the filter according to the schedule.

Part Role in the Machine and Failure Diagnostics

Filter 320/A7125 protects the fuel system from water and solid particles.

  • › Power loss (clogged filter restricts fuel supply).
  • › Engine stalling (water in the system).
  • › Starting difficulties.
  • › Water in fuel alert (sediment bowl needs draining).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Draining: Before unscrewing the old filter, drain the fuel and water through the drain plug in the sediment bowl (if present) to avoid spillage.
  2. Gasket Installation: Lubricate the new filter gasket with clean fuel. This will prevent damage during tightening.
  3. Bleeding: After replacing the filter, be sure to bleed the fuel system using the hand pump before attempting to start the engine.

Technical FAQ and Trivia

Is this a primary filter?

Yes, the water separator is usually the first (primary) filter in the system, installed before the fuel pump to protect it from water.

Does the filter come with a bowl?

Typically, filter 320/A7125 is the filter element itself. If the machine has a clear sediment bowl (glass), it must be unscrewed from the old filter and fitted to the new one.

Trivia about Hydradig

The JCB Hydradig 110W, which this filter fits, is the first wheeled excavator designed from the ground up for urban work. Its engine and tanks are located in the chassis (lower carriage), providing unparalleled stability and visibility from the cab.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX821344RX
32/925760
0.27 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
EXCAVATOR
OEM NUMBERS
32/925760 / 320/A7125
ENGINE
ISUZU
OUTER DIAMETER (MM)
88,69
INNER DIAMETER (MM)
23
HEIGHT (MM)
155

Specific References

MPN
32/925760
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Fuel filter, water separator suitable for the JCB JS excavator

Catalog number: SKX821344RX
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

30.14 zł

net price
24,50 zł
Available in large quantity Temporarily unavailable
24,50 zł
net price

30.14 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 2 points, it gives you 0.80 zł
  • Place an order within 03h 18m 50s And we will send your order today

    Lowest price from 30 days before the discount: 30.14 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    EXCAVATOR
    OEM NUMBERS
    32/925760 / 320/A7125
    ENGINE
    ISUZU
    OUTER DIAMETER (MM)
    88,69
    INNER DIAMETER (MM)
    23
    HEIGHT (MM)
    155
