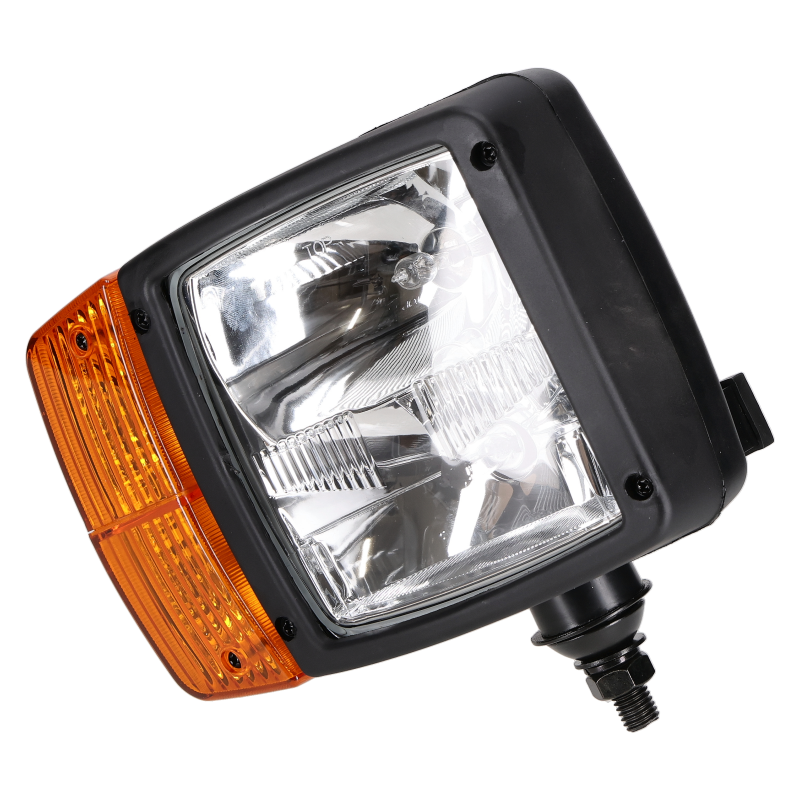

Headlight assy indicator included suitable for VOLVO BL71 - RIGHT
GX-AFTER

Headlight assy indicator included suitable for VOLVO BL71 - RIGHT

Catalog number:SKX908754A Nr OEM:VOE11882263 Manufacturer:GX-AFTER
Add a review

Right Front Combination Headlight suitable for Volvo BL71 BL61 - VOE11882263

Technical Specification and Compatibility

High-quality VOE11882263 right front headlight from the GX-AFTER offer. This is a complete combination lamp, integrating main beam, dipped beam, position light, and indicator in one housing. Dedicated to Volvo BL series backhoe loaders, L-series compact wheel loaders, and MC skid steers. The lamp is adapted for 12V systems and equipped with a 6-pin connector.

Part Number: VOE11882263
Mounting Side: Right Hand (RH)
Type: Front Combination Lamp (Headlight/Indicator)
Voltage: 12V
Functions: High/Low Beam, Position, Indicator
Connection: 6 Pin Connector (6 contacts)
Mounting Type: Standing / Pedestal (Vertical bolt)
Manufacturer: GX-AFTER

GX-AFTER is the smart choice for your machine. We provide high-class replacements that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility with the electrical system of Volvo machines.

Features of GX-AFTER VOE11882263 Lamp

Versatility: 4 lighting functions in one module eliminate the need for additional indicators, maintaining the original look of the machine.
Right Side Optics: Asymmetrical reflector designed for the right side ensures optimal shoulder illumination.
Solid Mounting: Reinforced "standing" type base with a single bolt allows easy angle adjustment and stable operation in the field.
6-PIN Connector: Built-in multi-pin socket facilitates "Plug & Play" connection to the factory Volvo harness.

Application in Volvo machinery

Machine Type Models
Backhoe Loaders BL60, BL61, BL61 Plus, BL61B, BL70, BL71, BL71 Plus, BL71B
Compact Wheel Loaders L20F, L25F, L30G, L30GS, L35G, L35GS, L35GT
Skid Steers MC60B, MC70B, MC80B, MC90B, MC110B

The lamp is dedicated to the right side. Before purchasing, check the plug type (number of pins) on your machine.

Related Parts and Hardware

The lamp requires standard halogen bulbs (H4 12V) and signal bulbs (P21W, W5W). If you need a lamp for the other side, look for the left counterpart.

⚠️ Safety Warning

Lack of a right headlight or indicator poses a serious risk in road traffic, making it difficult for others to judge the machine's width and the operator's intentions. A damaged lens can cause short circuits in the 12V system.

Part Role in the Machine and Failure Diagnostics

The right lamp is responsible for illuminating the roadside and signaling a right turn.

  • › No lights (burnt bulb, damaged 6-pin plug).
  • › Fogged reflector (cracked lens, leaking housing).
  • › Weak light beam (reflector corrosion).
  • › Loose lamp (damaged bottom mount).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Side Verification: This is the RIGHT lamp (Right Hand). The left lamp has a different light asymmetry and part number. Do not mix them up!
  2. Plug Check: Ensure your machine has a 6-pin socket. Older models might have a different configuration.
  3. Adjustment: After screwing in the lamp, adjust its tilt so that the low beam does not blind drivers from the opposite direction.

Frequently Asked Questions (FAQ)

How many pins does the connector have?

The lamp has a 6-pin connector (6 contacts), which is standard for newer Volvo BL series machines.

Does it fit the left side?

No. The right lamp has different light asymmetry (illuminates the right shoulder). Mounting on the left side is contrary to regulations.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX908754A
VOE11882263
1.20 kg

Data sheet

SUITABLE FOR
VOLVO
MACHINE TYPE
BACKHOE LOADER
WHEELED LOADER
OEM NUMBERS
VOE11882263 / 11882263

Specific References

MPN
VOE11882263
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Headlight assy indicator included suitable for VOLVO BL71 - RIGHT

Catalog number: SKX908754A
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

129.15 zł

net price
105,00 zł
Available in large quantity Temporarily unavailable
105,00 zł
net price

129.15 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 11 points, it gives you 4.40 zł
  • Lowest price from 30 days before the discount: 129.15 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    VOLVO
    MACHINE TYPE
    BACKHOE LOADER
    WHEELED LOADER
    OEM NUMBERS
    VOE11882263 / 11882263
