Adapter B-Lock 31004 type BOFORS
GX-AFTER

Adapter B-Lock 31004 type BOFORS

Catalog number:31004BL Nr OEM:31004 Manufacturer:GX-AFTER
Add a review

BOFORS B-LOCK BUCKET ADAPTER (SIZE B1) - 31004 / 4046797

Technical Specification and Compatibility

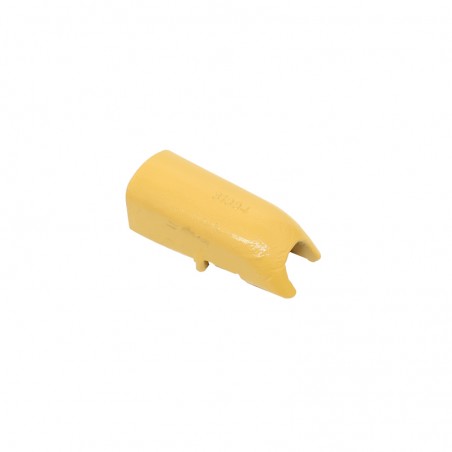

A key component of the tooth system – a high-quality Casting Forged weld-on adapter (tooth holder), compatible with the popular Bofors B-Lock system, size B1. This is a precision casting designed to be welded onto the cutting edge of a loader (Clamshell) or excavator bucket. It creates a durable socket (or "nose") for Bofors B1 teeth (tips), allowing for quick and secure replacement using a vertical lock pin.

Part number: 31004
Alternative part numbers: 4046797
System: Bofors B-Lock (Size B1)
Type: Weld-on Shank Adapter / Tip Holder
Compatible Teeth: 4047167 (31102), 4047168 (31106), 4044388 (31103), 4046799 (31104), 4046961 (31105)
Compatible Pin: 6254675

Required for Installation & Use

  • › B1 Teeth (Tips): e.g., 31102, 31104, 31106 (sold separately)
  • › B1 Lock Pin: Part no. 6254675 (sold separately)
  • › Welding consumables: Appropriate welding wire/electrodes for cast steel.

Application in machines

Brand Type / Series / Model
Universal All construction machines (excavators, loaders) with buckets being fitted with the Bofors B-Lock Size B1 system.

The list above is for reference. It is crucial to verify the system (Bofors B-Lock) and size (B1).

Bofors B-Lock System Compatibility

The table below shows compatible Bofors B-Lock system components, which we also offer:

Loader Tooth
Tooth Adapter Pin
4047166 (30101) - Size B0 4046816 6254673
4047167 (31102) - Size B1 4046797 (31004) 6254675
4047168 (31106) - Size B1 4046797 (31004) 6254675
3031537 (32101) - Size B2 4046819 (32004) 6254677
3031538 (32104) - Size B2 4046819 (32004) 6254677
Excavator Tooth
Tooth Adapter Pin
4044336 (31101) - Size B1 3031434 6254675
4044428 (32102) - Size B2 3031394 6254677
Excavator VIP Tooth
Tooth Adapter Pin
4046818 (30104) - Size B0 4046816 6254673
4046799 (31104) - Size B1 4046797 (31004) 6254675
4046961 (31105) - Size B1 4046797 (31004) 6254675
3032682 (32105) - Size B2 4046819 (32004) 6254677
Clamshell Teeth
Tooth Adapter Pin
4044291 (30103) - Size B0 4046816 6254673
4044388 (31103) - Size B1 4046797 (31004) 6254675
3031362 - Size B2 4046819 (32004) 6254677

⚠️ Installation Warning

Welding an adapter is a critical operation. Proper pre-heating of the adapter and bucket lip must be observed to avoid weld cracks. When installing/removing teeth (knocking out pins 6254675), always wear safety glasses. Metal fragments can fly off and cause serious eye injury.

Part's Role in the Machine and Failure Diagnostics

The adapter is the foundation of the tooth system. It is permanently joined to the bucket and transfers all digging forces from the lip to the replaceable tooth. Its "nose" is the key locking component that must remain in perfect condition to prevent tooth loss.

  • › Cracked welds where the adapter joins the cutting edge.
  • › Worn or "rounded" adapter nose (causing the tooth to be loose).
  • › Ovalized or damaged pin hole for the 6254675 pin.
  • › Complete fracture of the adapter due to overload or impact.

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 Expert's Guide: Key Installation Tips

  1. Proper Welding: Adapters are cast steel and require correct welding procedures, including pre-heating, to prevent weld cracks.
  2. Protect the Adapter Nose: Never work with teeth that are worn down to the adapter. When the tooth is too short, all abrasive force is transferred to the adapter nose, destroying it irreversibly.
  3. Always Use New Retainers: Never reuse an old lock pin (6254675). It is a component that wears and loses its holding properties.

Frequently Asked Questions (FAQ)

1. What does "Bofors B-Lock" Size B1 mean?

Bofors is a popular tooth system, and "B-Lock" is a specific retention type. In this system, the tooth is slid onto the adapter and then locked with a vertical drive-through pin. "B1" is the size of the system - this adapter (31004 / 4046797) is exclusively for B1 teeth (e.g., 31102) and the B1 pin (6254675).

2. What is the difference between this adapter (4046797) and 4046819?

They are different sizes. This adapter (4046797) is Size B1. The 4046819 adapter (32004) is Size B2 (for 32101 teeth). They are not interchangeable.

3. Can I weld a CAT J300 tooth onto this?

No. This product is an adapter (a holder), which is designed to have a replaceable tooth *fitted* onto it. It is not designed to have another tooth welded to it. Furthermore, the Bofors B-Lock system is completely incompatible with the CAT J-Series.

Znak zapytania

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

31004BL
31004
1.90 kg

Data sheet
