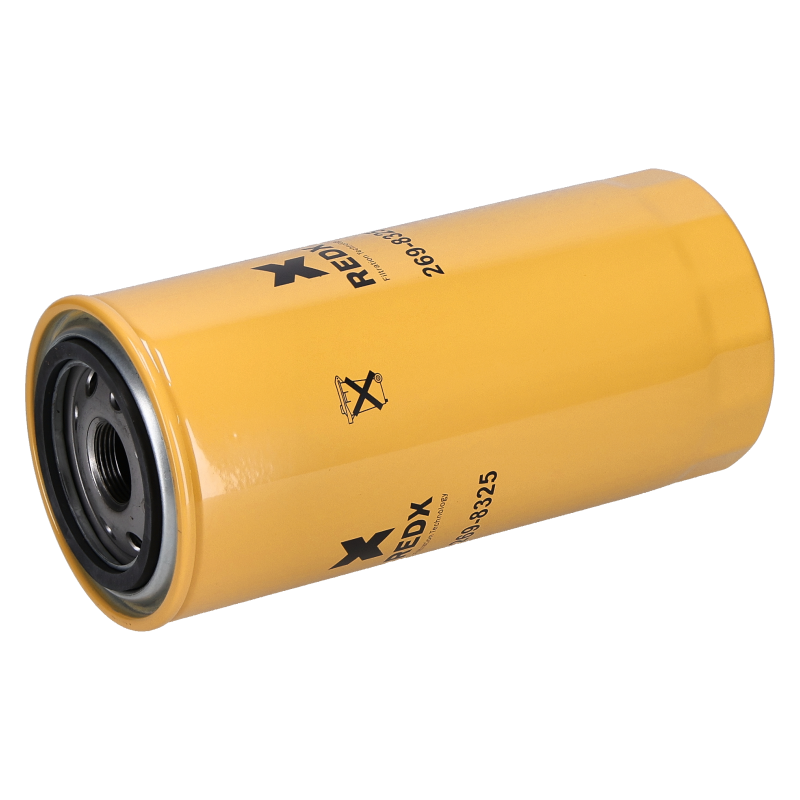

Engine oil filter suitable for CAT
REDX

Engine oil filter suitable for CAT

Catalog number:SKX821469RX Nr OEM:269-8325 Manufacturer:REDX
Add a review

Engine Oil Filter suitable for CAT C6.6 C7.1 - 2698325

Technical Specification and Compatibility

Engine oil filter with part number 2698325 from the REDX offer. It is a high-performance spin-on filter, dedicated to modern Caterpillar (CAT) machines equipped with ACERT engines, including popular C4.4, C6.6, and C7.1 units. This filter ensures key protection of the lubrication system in a wide range of equipment: from excavators and loaders, through rollers, to generators and forestry machines.

Part Number: 2698325
Component Type: Engine Oil Filter
Height: 210 mm
Outer Diameter: 96 mm
Type: Spin-on
Dedicated Engines: CAT C4.4, C6.6, C7.1, C2.8, C3.6
Manufacturer: REDX

REDX filters are characterized by the use of advanced filter media that effectively capture soot and metal shavings, maintaining the lubricating properties of the oil throughout the service interval, even in difficult working conditions.

Features of REDX 2698325 Filter

High Capacity: The height of 210 mm ensures a large active surface of the filter material, which allows for the absorption of a significant amount of contaminants without choking the oil flow.
Durable Canister: Solid 96 mm diameter housing is resistant to pressure surges (e.g., during cold start) and mechanical damage.
ACERT Engine Protection: Designed to meet the requirements of modern engines with precision injection systems and hydraulic tappets.
Easy Installation: Standard thread and integrated gasket ensure quick replacement and tightness of the connection with the filter base.

Application in CAT machinery

Category Models
Backhoe Loaders 415F2, 416F, 416F2, 420F, 420F2, 422F2, 427F2, 428F, 428F2, 430F, 430F2, 432F, 432F2, 434F, 434F2, 440, 444F, 444F2, 450, 450F
Wheeled Excavators M313, M314, M315, M315D, M315F, M316D, M316F, M317, M318, M318D, M318F, M319, M320, M320D2, M320F, M322, M322D, M322F, MH3022, MH3024, MH3026
Tracked Excavators 311F, 312E, 312F, 313, 313F, 314E, 314F, 315F, 316E, 316F, 318E, 318F, 320, 320D, 320E, 320F, 323, 323D, 323E, 323F, 324E, 325F, 326D2, 326F, 329D2, 329E, 329F, 330D2, 330F, 335F, 336D2, 340D2, 538, 548, 558
Telehandlers TH336C, TH337C, TH357, TH406C, TH407C, TH408, TH414C, TH417C, TH514D, TL642, TL943, TL1055, TL1255
Dozers D3K2, D4K2, D5K2, D5R2, D6K, D6K2, D6N, 814K
Wheel & Track Loaders 910K, 910M, 914, 914G, 914K, 914M, 918M, 920K, 924, 924K, 926M, 928H, 930, 930K, 930M, 938, 938K, 938M, 950, 950M, 962, 962M, 953, 953D, 953K, 963, 963D, 963K
Rollers 815, 815K, 816, 816K, CB10, CB13, CB15, CB46B, CB-44B, CB-54B, CCS7, CD10, CP11, CP12, CP14, CP44B, CP54B, CP56B, CP68B, CP74B, CS10, CS11, CS12, CS44B, CS54B, CS56B, CS64B, CS68B, CS74B, CS76B, CS78B, CW34
Asphalt Pavers AP400, AP455, AP500, AP500F, AP555, AP555F, AP600, AP600F, AP655, AP655F, AP1000, AP1055, BG600D, BG1000E, PE636
Other Applications Forestry Machines (553C, 559, 563C, 573C, 2470C, 2670C), Generators (LC30XX, LC51XX, C4.4, C7.1), Engines (C2.8, C3.4B, C3.6, C4.4, C6.6, C7.1), Scrapers (613G), Pipelayers (PL61), Marine

Filter fits a huge range of machines. Check dimensions: 210 mm height, 96 mm outer diameter.

Related Parts and Hardware

Filter 2698325 is a spin-on filter with an integrated gasket. When changing oil, we recommend replacing fuel filters and checking the condition of air filters.

⚠️ Operational Warning

In engines with ACERT technology and hydraulic valve lifters, oil cleanliness is crucial. Using low-quality filters can lead to oil pressure drop and damage to the camshaft or turbocharger.

Part Role in the Machine and Failure Diagnostics

The filter is responsible for removing contaminants from the lubrication system.

  • › Oil pressure light (clogged filter).
  • › Loud engine noise (poor lubrication).
  • › Oil leak (leaking filter gasket).
  • › Rapid blackening of oil (filter not capturing soot).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Gasket Lubrication: Before screwing on the filter, always smear the rubber gasket with a thin layer of clean oil. This will prevent it from twisting and facilitate removal.
  2. Tightening: Tighten the filter by hand. Using a wrench for tightening (instead of loosening) can damage the can or thread. Usually, hand-tight + 3/4 turn is enough.
  3. Check: After starting the engine, check for leaks around the filter. Remember to check the oil level on the dipstick after a while and top up, as some oil will fill the filter.

Technical FAQ and Trivia

Does it fit C6.6?

Yes, model 2698325 is one of the primary filters for CAT C6.6 and C7.1 engines, installed in many medium-sized machines.

What are the dimensions?

Filter height is 210 mm, and the outer diameter of the canister is 96 mm.

Trivia about ACERT technology

CAT C6.6 and C7.1 engines use ACERT technology, which optimizes the combustion process to reduce exhaust emissions. However, this requires very clean oil to maintain the efficiency of the hydraulic injection control system (HEUI in older or CR in newer ones).

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX821469RX
269-8325
0.00 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
BACKHOE LOADER
DOZER
GENERATOR
TELESCOPIC HANDLER
OEM NUMBERS
71010200005 / P550920 / ZP93D / 3L0343 / 7988220 / 2050089 / 4226293M1 / 2050089 / 57325 / SO11092 / SO 11092 / 10000-66719 / 4627133 / 2654A111 / 4147K006 / 462-1171 / 4621171 / 2698325 / 269-8325
ENGINE
CAT
PERKINS
OUTER DIAMETER (MM)
96
HEIGHT (MM)
210

Specific References

MPN
269-8325
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Engine oil filter suitable for CAT

Catalog number: SKX821469RX
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

43.05 zł

net price
35,00 zł
Available in large quantity Temporarily unavailable
35,00 zł
net price

43.05 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 4 points, it gives you 1.60 zł
  • Lowest price from 30 days before the discount: 43.05 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CAT
    MACHINE TYPE
    BACKHOE LOADER
    DOZER
    GENERATOR
    TELESCOPIC HANDLER
    OEM NUMBERS
    71010200005 / P550920 / ZP93D / 3L0343 / 7988220 / 2050089 / 4226293M1 / 2050089 / 57325 / SO11092 / SO 11092 / 10000-66719 / 4627133 / 2654A111 / 4147K006 / 462-1171 / 4621171 / 2698325 / 269-8325
    ENGINE
    CAT
    PERKINS
    OUTER DIAMETER (MM)
    96
    HEIGHT (MM)
    210
