Earth drill suitable for JCB MINI 801 - 980/A4162 mini excavators
JCB

Earth drill suitable for JCB MINI 801

Catalog number:980/A4162D Nr OEM:980/A4162 Manufacturer:JCB
Add a review

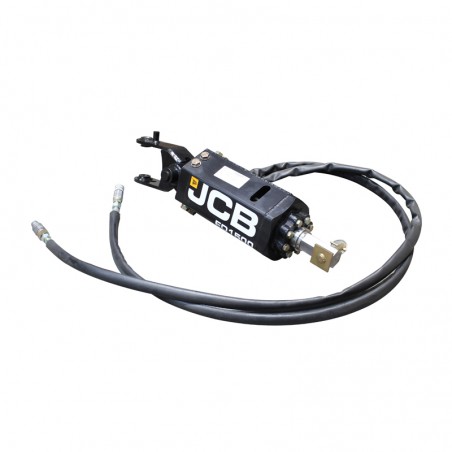

GENUINE JCB AUGER DRIVE (1500NM) FOR MINI EXCAVATORS - 980/A4162

Technical Specification and Compatibility

A genuine, complete auger drive unit by JCB, designed for mini excavators (e.g., 8008, 801x) and skid steer loaders. This is a professional-grade hydraulic drive head with 1500 Nm of torque, designed for precise and efficient drilling of post holes. The heavy-duty planetary gearbox and compact, powerful hydraulic motor guarantee reliability in tough conditions. This kit is complete and ready to work, including the hanger bracket and connection hoses.

Part number: 980/A4162
Manufacturer: JCB (Genuine)
Type: Hydraulic Auger Drive Head
Torque: 1500 Nm
Auger Bit Fitment: 25 mm Pin Size
Max. Flight Diameter: 300 mm
Weight: 59.4 kg

Genuine JCB product – a guarantee of the highest quality, perfect fit, and 100% compatibility with your machine.

Required Attachments (Sold Separately)

  • › Auger Bits (Flights): You must select a bit (up to 300mm) and type (Standard, Heavy Duty, Rock Duty) for your ground conditions.
  • › Mounting Pins: To connect the hanger bracket to your machine's dipper arm.
  • › Extension Bar (Optional): e.g., 980/A2043 (for deeper holes).

Application in machines

Brand Type / Series / Model
JCB Mini Excavators: 8008, 801x (e.g., 8014, 8018), 802x (e.g., 8025), 803x (e.g., 8030)
Skid Steer Loaders
Backhoe Loaders: MICRO, MIDI CX

The list above is for reference. Hydraulic and mechanical (hanger bracket) compatibility is key.

⚠️ Safety Warning

Operating an auger carries high risk. Before drilling, ensure there are no underground utilities (gas, electric, water) in the area. Never place hands, feet, or loose clothing near the rotating auger. Ensure the auger bit is securely pinned to the drive unit.

Part'S Role in the Machine and Failure Diagnostics

The auger drive is a work attachment that converts the machine's hydraulic power (flow and pressure) into high torque, which is necessary to turn an auger bit and drill holes.

  • › Hydraulic oil leaks (failed motor seal or casing).
  • › No torque (drive "stalls" in light soil) - internal damage to the hydraulic motor.
  • › Loud gearbox noise (whining, grinding) - worn bearings or planetary gear failure.
  • › Excessive play on the output shaft (worn output bearing).

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 Expert's Guide: Key Operation Tips

  1. Match Hydraulics: Check your machine's hydraulic flow (l/min) and pressure (bar). Connecting the auger drive to a circuit with excessive flow can destroy the hydraulic motor.
  2. Select the Right Bit: Match the auger bit type to the ground conditions. Using a standard "dirt" bit (like 980/A2023) in rocky ground (which requires a "rock duty" bit like 980/A2040) will destroy the teeth and overload the drive.
  3. Avoid Side Loading: Drill vertically. Do not "pry" or "yank" the auger sideways to widen a hole. This puts extreme lateral stress on the output shaft bearing.
  4. Clean Couplers: Before connecting the hydraulic hoses, ensure the couplers on the machine and the hoses are perfectly clean. Dirt is the #1 enemy of hydraulics.

Frequently Asked Questions (FAQ)

1. Is this a complete auger with the bit?

No, this is the auger drive (the hydraulic head unit) which includes the mounting bracket and hoses. The auger bits (flights), like 980/A2023, are sold separately and selected based on the desired hole diameter.

2. What does "Max Flight Diameter 300mm" mean?

It means this drive unit (with 1500 Nm torque) is rated for auger bits up to a maximum diameter of 300 mm (e.g., 980/A2023 or 980/A2032). Using a larger bit (e.g., 460 mm) will overload the gearbox and hydraulic motor, leading to damage.

3. What does "Pin Size 25mm" mean?

This is the diameter of the pin used to connect the auger bit (flight) to the output shaft of this drive unit.

Znak zapytania

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

JCB
980/A4162D
980/A4162
66.00 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
MINIEXCAVATOR
SKID STEER LOADER
OEM NUMBERS
980/A4162

Specific References
