Gearbox housing suitable for JCB - front - Powershift PS760 - 459/30277
GX-OEM

Gearbox housing suitable for JCB - front - Powershift PS760

Catalog number:459/30277 Nr OEM:459/30277 Manufacturer:GX-OEM
Add a review

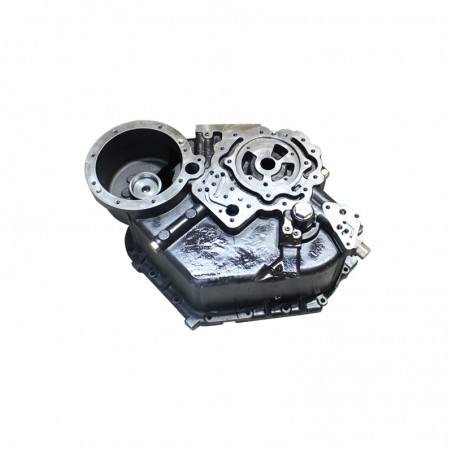

Front Gearbox Housing (Powershift PS760) suitable for JCB 3CX 4CX - 459/30277

Technical Specification and Compatibility

Front drive output housing 459/30277 from the GX-OEM product line. This is a precise casting that forms part of the gearbox body, covering the clutches and 4WD shafts. Dedicated strictly to JCB 3CX and 4CX backhoe loaders equipped with the 4-speed automatic Powershift PS760 transmission.

Part Number: 459/30277
Component Type: Front Housing / Drive Output Cover
Transmission Type: Powershift PS760 (4-speed)
Location: Front axle drive output
Material: High-strength Cast Iron

By choosing GX-OEM parts, you serve uncompromising first-assembly quality. Our products are manufactured with the highest precision, guaranteeing a perfect fit and parameters identical to the original. This is the best investment in the long and trouble-free operation of your machine.

Features of GX-OEM 459/30277 Housing

Dedicated for PS760: Specific casting geometry fits only Powershift transmissions, ensuring correct seating of bearings and the 4WD solenoid coil.
Machining Precision: Milled contact surfaces guarantee a perfect seal with the main body, eliminating the risk of gear oil leaks.
Mechanical Strength: Massive structure resistant to torsional stresses and vibrations generated by the front drive shaft.
OEM Standard: All mounting holes, threads, and oil channels are positioned according to JCB technical documentation.

Application in JCB machinery

Machine Type Models
Backhoe Loaders 3CX, 4CX (equipped with PS760 4-speed Powershift)

Compatibility depends entirely on the gearbox model. Check the transmission nameplate before purchasing.

Related Parts and Hardware

Replacing the housing requires a new paper or liquid gasket and an output shaft seal (simmering). You should also verify the condition of the output bearing and the 4WD solenoid.

⚠️ Safety Warning

Damage to the drive output housing can result in sudden oil leakage and transmission seizure. A crack near the shaft mount can also lead to drive shaft vibrations and axle damage.

Part Role in the Machine and Failure Diagnostics

This housing closes the front part of the gearbox (below the torque converter), providing bearing support for the front drive output shaft.

  • › Oil leak at the front shaft flange.
  • › Housing crack (visible scratches, oil seeping).
  • › Noise coming from the front of the gearbox (damaged bearing seat).
  • › Problems engaging 4WD (if the solenoid is mounted in the housing and is damaged).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Gearbox Identification: Ensure you have a Powershift transmission (PS760). Manual gearboxes have a different front drive housing.
  2. Cleanliness: Before assembly, remove any old gasket residue. The surface must be perfectly smooth and clean.
  3. Bearing Assembly: Press the bearing and seal using appropriate sleeves to avoid misalignment and damage to the seat in the new housing.

Frequently Asked Questions (FAQ)

Does it fit a manual transmission?

No. Manual transmissions (Synchro Shuttle) have a different front drive output design. This housing (459/30277) is dedicated exclusively to Powershift PS760.

Are seals included?

No, the product is the bare housing casting. Seals, bearings, and other internal components must be purchased separately.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

459/30277
459/30277
55.00 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
459/30277 / 459/30319

Specific References

MPN
459/30277
