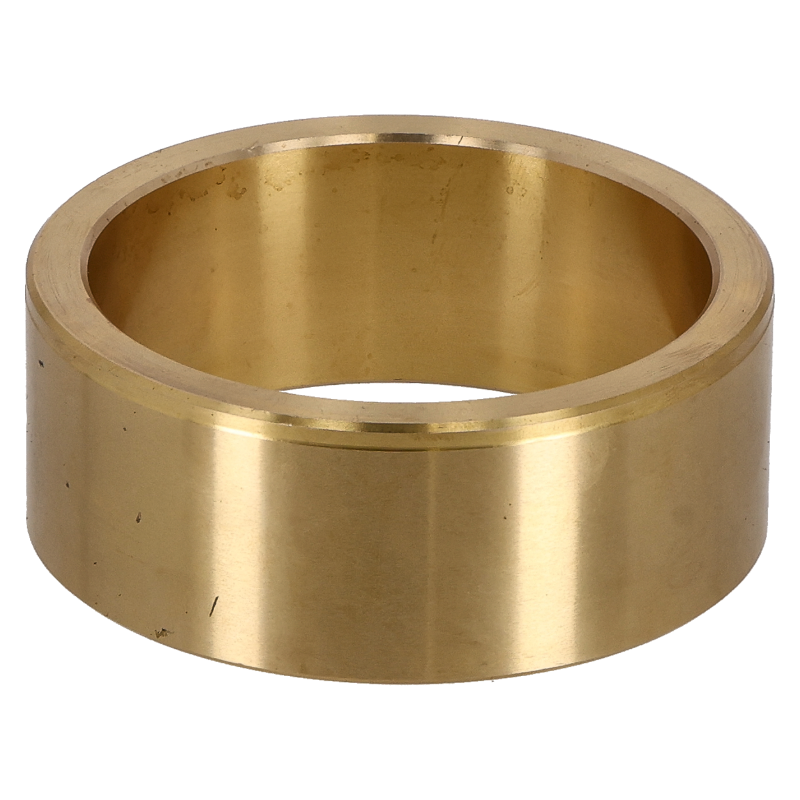

Carriage Bushing suitable for JCB 3CX 4CX 332/G0942 GX-AFTER
GX-AFTER

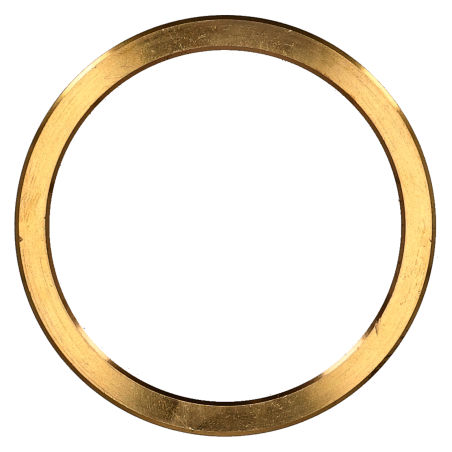

Bushing suitable for JCB machinery

Catalog number:SKX829898A Nr OEM:332/G0942 Manufacturer:GX-AFTER
Add a review

Carriage Bushing suitable for JCB 3CX 4CX - 332/G0942

Technical Specification and Compatibility

Carriage bushing with part number 332/G0942 from the GX-AFTER offer. It is a specialized sliding bush made of high-grade bronze, designed for JCB construction machinery. This element is installed in the rear excavator system (kingpost carriage), where it is responsible for smooth rotation and movement of the arm, reducing friction between the pin and the machine body.

Part Number: 332/G0942
Component Type: Carriage Bush / Sliding Bearing
Outer Diameter: 90 mm
Inner Diameter: 75 mm
Height: 34 mm
Material: Bronze
Application: Rear arm rotation system
Manufacturer: GX-AFTER

GX-AFTER bushings made of bronze are characterized by excellent sliding properties and resistance to seizure. This material is "softer" than the steel pin, so the bushing wears out (as a consumable part), protecting expensive structural elements of the machine.

Features of GX-AFTER 332/G0942 Bushing

Premium Material: The use of bronze ensures high load capacity at low rotational speeds and corrosion resistance, which is crucial in difficult construction conditions.
Precise Dimensions: Accurate manufacturing (90x75x34 mm) guarantees a perfect fit with the seat in the carriage and the mating pin, eliminating play.
Lubricity: The material structure favors maintaining an oil film, which reduces friction and extends the life of the connection.
Component Protection: It acts as a "sacrificial" element, wearing out first to protect the seat in the carriage casting from ovalization.

Application in JCB machinery

Category Models
Backhoe Loaders 3CX, 4CX

Before purchasing, we recommend verifying the dimensions of the old bushing, as JCB machines use different joint variants depending on the serial number.

Related Parts and Hardware

Bushing 332/G0942 works with a steel pin. When replacing the bushing, it is also recommended to verify the condition of the pin – if it is worn, the new bushing will wear out instantly. Also remember about shims and high-quality grease.

⚠️ Operational Warning

Ignoring play on the excavator carriage leads to ovalization of the seats in the frame casting. Regenerating worn holes (line boring) is a very expensive and time-consuming process. Regular replacement of bronze bushings is the cheapest way to keep the machine in working order.

Part Role in the Machine and Failure Diagnostics

The bushing is responsible for the precision of the rear arm operation.

  • › Play on the arm (visible "slop" when changing bucket direction).
  • › Difficulty digging precisely (arm "wanders").
  • › Squeaks and grinds (lack of lubrication, metal-on-metal friction).
  • › Grease leaks mixed with metal filings.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Freezing: To facilitate installation, place the new bushing in the freezer for a few hours. Thermal contraction of the metal will make it easier to fit into the seat.
  2. Seat Cleaning: Before driving in the new bushing, thoroughly clean the seat from rust and burrs. Use sandpaper if necessary.
  3. Installation: Drive the bushing in using a washer (e.g., the old bushing or a piece of wood) so as not to damage its edges. Ensure it enters straight.

Technical FAQ and Trivia

Why bronze and not steel?

Bronze is a "self-lubricating" material and softer than steel. In the absence of grease, the bronze bushing will wear out, not the expensive pin or carriage seat. It acts as a mechanical fuse.

Where exactly is this bushing?

Bushing 332/G0942 is located in the so-called kingpost or carriage, which is the element that slides along the rear frame and allows the entire digging attachment to rotate.

Material trivia

In some modern machines, composite or hardened steel bushings are used, but in classic designs like the JCB 3CX, bronze remains irreplaceable due to its resistance to seizure under high impact loads.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX829898A
332/G0942
0.59 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
808/00388 / 332/G0942

Specific References

MPN
332/G0942
