Bucket 30 cm suitable for CAT 301.4, 301.5, 301.6, 301.8 mini excavators
HIMACORE

Bucket 30 cm suitable for CAT 301.4, 301.5, 301.6, 301.8 mini excavators

Catalog number:SKX825124HM Nr OEM:B30-CAT301 Manufacturer:HIMACORE
Add a review

30cm Reinforced Digging Bucket suitable for CAT 301.5 301.8 - B30-CAT301

Technical Specification and Compatibility

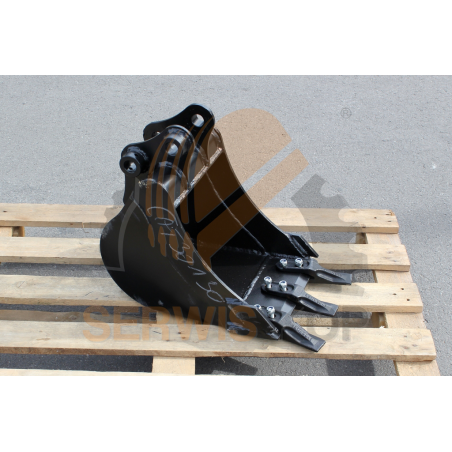

Professional 300 mm (30 cm) digging bucket produced by the renowned brand HIMACORE. This attachment has been precision-engineered for Caterpillar (CAT) mini excavators of the 301 series (models 301.4 to 301.8). The construction is based on high-strength steel ensuring long-term operation. The bucket is complete (with teeth) and ready for immediate mounting on pins or a quick hitch.

Part Number: B30-CAT301
Type: Digging Bucket / Trenching Bucket
Working Width: 300 mm
Capacity (ISO 7451): 26 Liters
Cutting Edge Material: S355 Low Alloy Steel
Body Thickness: 5 mm
Hitch Dimensions: 30mm Pins / 105mm Width / 126mm Spacing

HIMACORE attachments are the engineering answer to the needs of demanding operators. The use of certified materials and reinforced construction guarantee that the bucket will meet challenges on any construction site, maintaining its performance for years.

Advanced Features of HIMACORE B30-CAT301

Reinforcement Package: Structure equipped with additional bottom reinforcing strips and robust side cutters, increasing bucket rigidity.
Durable S355 Blade: Use of high-strength low-alloy steel on the cutting edge ensures resistance to abrasion and impact fractures.
Precise Hitch: Mounting dimensions perfectly matched to CAT standard (30/105/126) eliminate play and ensure stable attachment operation.
Optimal Geometry: Extended bottom profile facilitates ground penetration and bucket filling while preventing spoil spillage.

Application in machinery

Brand Mini Excavator Models
Caterpillar (CAT) 301.4, 301.5, 301.6, 301.6C, 301.8, 301.8C

The bucket may also fit other machines with identical hitch dimensions (30mm pins, 105mm arm width, 126mm spacing).

Related Parts and Hardware

To mount the bucket, two 30 mm diameter pins are required (not included with the bucket). The product comes factory-equipped with replaceable teeth. We recommend verifying the condition of bushings in the machine arm before installation.

⚠️ Safety Warning

Overloading the bucket by lifting elements exceeding its nominal capacity or prying roots sideways can lead to hitch deformation or fatigue cracks. Use the attachment as intended.

Part Role in the Machine and Failure Diagnostics

The 30 cm bucket is a basic tool for digging narrow trenches for cables, drainage pipes, or foundations. Its technical condition directly affects the speed and precision of work.

  • › Worn cutting edge (difficulty penetrating the ground).
  • › Cracks on welds (result of overloads or impacts).
  • › Mounting hole ovalization (pin play).
  • › Wear or loss of teeth.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Verify Dimensions: Ensure your machine is a CAT 301 series (hitch 30/105/126). Larger models (e.g., 302.5) have different dimensions.
  2. New Pins: Do not mount a new bucket on old, worn pins. This will cause rapid wear of the holes in the new hitch.
  3. Lubrication: Generous lubrication of pins during assembly and daily maintenance is the basis for connection longevity.

Frequently Asked Questions (FAQ)

Does the bucket come with teeth?

Yes, the bucket is delivered as complete, with the tooth system installed, ready for work.

What does S355 steel mean?

S355 is a grade of high-strength structural steel with excellent weldability. It provides significantly better resistance to dynamic loads and abrasion than ordinary structural steel.

Does it fit a quick hitch?

Yes, if the quick hitch is dedicated to CAT 301 mini excavators and supports standard pin dimensions (30mm) and spacing (126mm).

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX825124HM
B30-CAT301
35.00 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
MINIEXCAVATOR
OEM NUMBERS
B30-CAT301
WIDTH (MM)
300
NUMBER OF TEETH
3
PINS (MM)
30
ARM WIDTH (MM)
105
SPACING OF THE PINS (MM)
126

Specific References

MPN
B30-CAT301
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Bucket 30 cm suitable for CAT 301.4, 301.5, 301.6, 301.8 mini excavators

Catalog number: SKX825124HM
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

1,100.85 zł

net price
895,00 zł
Available in large quantity Temporarily unavailable
895,00 zł
net price

1,100.85 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 90 points, it gives you 36.00 zł
  • Lowest price from 30 days before the discount: 1,100.85 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CAT
    MACHINE TYPE
    MINIEXCAVATOR
    OEM NUMBERS
    B30-CAT301
    WIDTH (MM)
    300
    NUMBER OF TEETH
    3
    PINS (MM)
    30
    ARM WIDTH (MM)
    105
    SPACING OF THE PINS (MM)
    126
