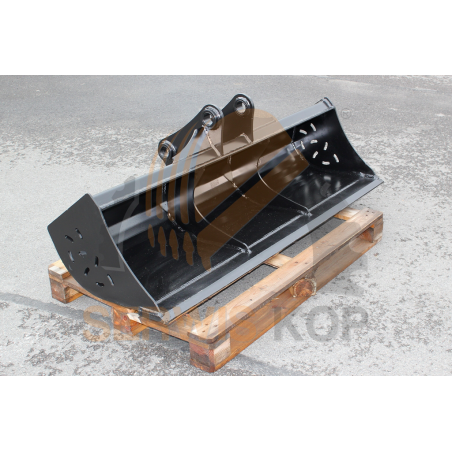

Grading bucket 150cm suitable for VOLVO BL60, BL61, BL70, BL71 - G2
NEXGEN

Grading bucket 150cm suitable for VOLVO BL60, BL61, BL70, BL71 - G2

Catalog number:BG150VOLVOG Nr OEM:BG150VOLVOG Manufacturer:NEXGEN
Add a review

150cm Grading / Ditching Bucket (G2 Blade) suitable for Volvo BL60 BL71 - BG150VOLVOG

Technical Specification and Compatibility

A brand new, professional 150 cm (1500 mm) wide grading bucket by NEXGEN. Designed specifically for Volvo BL series backhoe loaders (BL60, BL61, BL70, BL71). The bucket is ready to work and has standard hitch dimensions (45/168/306), guaranteeing trouble-free mounting on pins or via a quick hitch.

Part Number: BG150VOLVOG
Type: Grading Bucket / Ditching Bucket / Mud Bucket
Width: 1500 mm (150 cm)
Capacity (ISO 7451): 0.22 m³ (220 L)
Cutting Edge Material: G2 Wear-Resistant Steel
Pin Diameter: 45 mm
Dipper Width: 168 mm
Pin Centers: 306 mm

NEXGEN buckets combine durability and smart design. Thanks to high-grade steel and reinforced profiles, our attachments ensure long service life even in difficult construction conditions, providing a reliable alternative to original parts.

Innovative Features of the NEXGEN BG150 Bucket

Internal Reinforcements: A special rib system stiffens the structure, preventing the bucket from twisting under uneven loads.
Extended Bottom Profile: Optimized shape facilitates material loading and prevents spillage during fast arm movements.
G2 Cutting Edge: The cutting edge is made from G2 wear-resistant steel, guaranteeing long life during finishing work.
Robust Body: Shell made of quality steel ensures rigidity and resistance to mechanical damage.

Application in machinery

Brand Machine Type Models
Volvo Backhoe Loaders BL60, BL61, BL70, BL71 (all years)

The list above is for reference. It is crucial to verify the hitch dimensions (45/168/306 mm) on your machine.

Related Parts and Hardware

The bucket has ready-made holes for pins (with bushings). To mount it, you need two 45 mm diameter pins (if the old ones are worn). We also recommend checking the condition of the bushings in the arm and link.

⚠️ Safety Warning

The 150 cm grading bucket is designed for loose materials and ground profiling. Using it for digging in hard, stony ground or ripping roots can overload the machine's arm or damage the bucket itself.

Part Role in the Machine and Failure Diagnostics

A grading bucket (ditching bucket) is used for finishing work: leveling ground, forming slopes and ditches, cleaning trench bottoms, and loading light bulk materials (topsoil, sand, snow). The 150 cm width ensures high efficiency in cleanup work.

  • › Excessive cutting edge wear (loss of straight edge).
  • › Fatigue cracks at the hitch (result of overloading).
  • › Deformation of the bucket shell (e.g., after hitting a boulder).
  • › Worn pin holes in the hitch.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Check Dimensions: Ensure your arm is 168 mm wide and uses 45 mm pins. This is standard for Volvo BL, but verification is important.
  2. New Pins: Mounting a new bucket on old, worn pins will quickly ruin the hitch holes. It's worth replacing the set.
  3. Greasing: Generously grease the pins before assembly. Regular greasing (daily!) is crucial for the durability of the connection.
  4. Motion Test: After installation, check if the bucket moves freely through its full range and doesn't hit the arm.

Frequently Asked Questions (FAQ)

Is the bucket sold with pins?

No. The bucket is sold without pins. Pins (45mm) must be purchased separately or you can use your existing ones if they are in good condition.

Does it fit a quick hitch?

Yes, the bucket hitch is made to standard Volvo dimensions (45/168/306), so it fits most standard mechanical and hydraulic quick hitches dedicated to these machines.

What is the capacity of this bucket?

The geometric capacity (according to ISO 7451 standard) is 0.22 m³, or 220 liters.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

BG150VOLVOG
BG150VOLVOG
133.00 kg

Data sheet

SUITABLE FOR
VOLVO
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
BG150VOLVOG
WIDTH (MM)
1500
PINS (MM)
45
ARM WIDTH (MM)
168
SPACING OF THE PINS (MM)
306

Specific References

MPN
BG150VOLVOG
