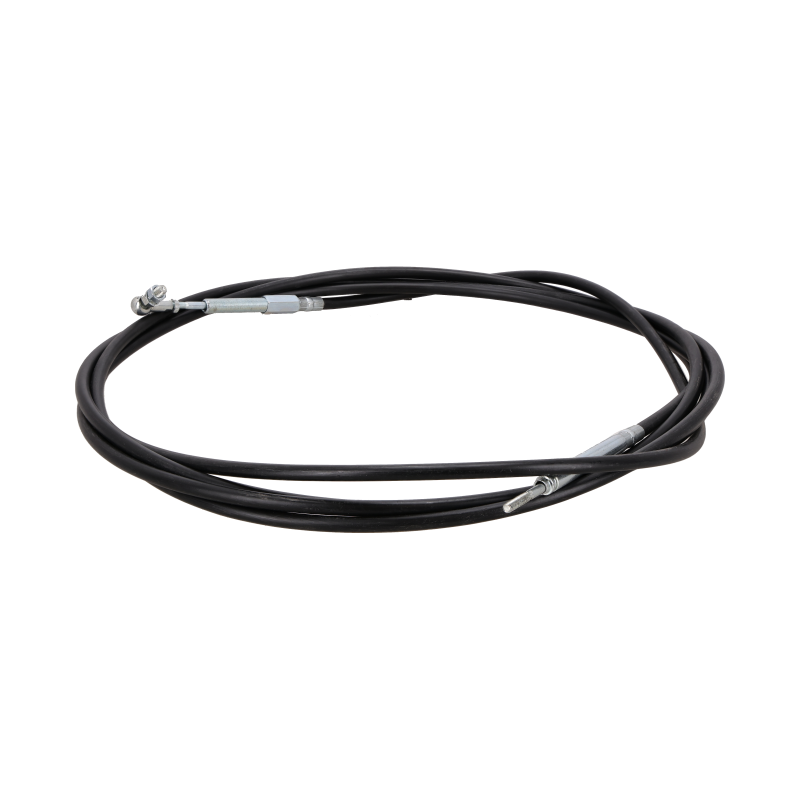

Excavator arm lock cable suitable for JCB 3CX 4CX
GX-AFTER

Excavator arm lock cable suitable for JCB 3CX 4CX

Catalog number:SKX956963A Nr OEM:910/45200 Manufacturer:GX-AFTER
Add a review

Backhoe Arm Slew Lock Cable (Pre-1997) suitable for JCB - 910/45200

Technical Specification and Compatibility

A high-quality 910/45200 arm lock cable by GX-AFTER. This is the safety cable that connects the in-cab lever to the slew lock pin. It is designed for older models of JCB 3CX and 4CX backhoe loaders (produced before 1997), which are equipped with the pin-style transport lock.

Part Number: 910/45200
Type: Backhoe Arm Slew Lock Cable
Compatibility: JCB 3CX, 4CX (Models up to 1997)

GX-AFTER is the smart choice for your machine. We provide high-class replacements that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability you can depend on.

Features of the 910/45200 Lock Cable

Reliable Operation: Restores function to the arm's transport lock, crucial for road safety.
Durable Sheath: A tough, weather-resistant outer sheath protects the inner steel cable from abrasion and kinking.
Smooth Action: A low-friction inner liner prevents the cable from seizing or jamming, even with infrequent use.
Perfect Fit: Precise length and end fittings (ferrules) guarantee easy installation on 3CX/4CX models (pre-1997).

Application in machinery

Brand Type / Series / Model
JCB Backhoe Loaders: 3CX, 4CX (Older models, up to 1997)

The list above is for reference. It is crucial to verify the VIN (pre-1997) and lock type (pin-style) on your machine.

Related Parts and Hardware

This 910/45200 cable connects the in-cab lever to the slew lock pin (e.g., 125/81200). When replacing, we recommend checking the condition of the pin itself and the activating lever in the cab.

⚠️ Safety Warning

A broken or seized lock cable makes it impossible to secure the arm for transport. This creates a risk of uncontrolled boom slew during road travel, which can lead to striking other vehicles or obstacles. A seized cable can also prevent the lock from being disengaged, immobilizing the machine.

Part Role in the Machine and Failure Diagnostics

The 910/45200 cable is a sheathed control cable that allows the operator to remotely (from the cab) operate the kingpost slew lock pin. Pulling the lever in the cab pulls the cable, which retracts or inserts the locking pin, allowing the backhoe arm to slew. Releasing the lever allows the spring on the pin to return it to the lock position (for transport).

  • › Seized cable (the lever in the cab is extremely hard to move or won't return).
  • › Broken cable (the lever moves loosely with no resistance, and the pin does not move).
  • › Cracked or corroded outer sheath, allowing water and dirt inside.
  • › Damaged cable end fittings.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Verify Model Year: Ensure your machine is pre-1997. Newer machines use a different slew lock system.
  2. Correct Routing: When installing, route the new cable along the same path as the old one, avoiding sharp bends or proximity to hot components (exhaust, turbo).
  3. Lubricate Pin: Before connecting the cable, ensure the lock pin (e.g., 125/81200) moves freely in its bore and is well-greased.
  4. Adjust Tension: After installation, adjust the cable tension at the adjustment nuts so the lever has minimal free play and fully engages/disengages the pin.

Frequently Asked Questions (FAQ)

Will this cable fit my 2005 3CX?

No. This cable (910/45200) is for older models (pre-1997) with the "old slew type" (rack and pinion). A 2005 machine has a newer slew ring system and a completely different lock mechanism.

My lock lever is very stiff. Will replacing the cable fix it?

Yes, this is the most likely cause. Over time, water and dirt get inside the sheath, causing the cable to rust and seize. A new cable will restore smooth operation.

Is the slew lock pin 125/81200 included?

No, this product is only the cable 910/45200. The lock pin (125/81200) is a separate part.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX956963A
910/45200
2.35 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
910/45200

Specific References

MPN
910/45200
