External air filter suitable for JCB 2CX 2DX
NEXGEN

External air filter suitable for JCB 2CX 2DX

Catalog number:32/909101B Nr OEM:32/909101 Manufacturer:NEXGEN
Add a review

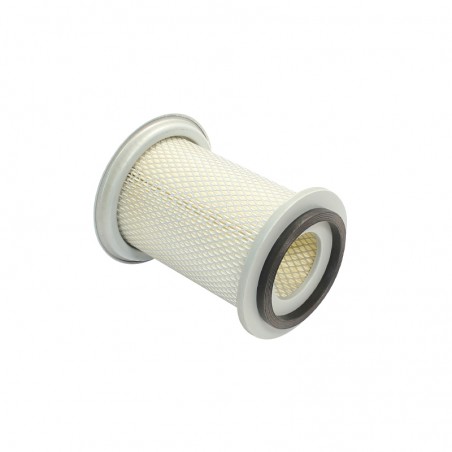

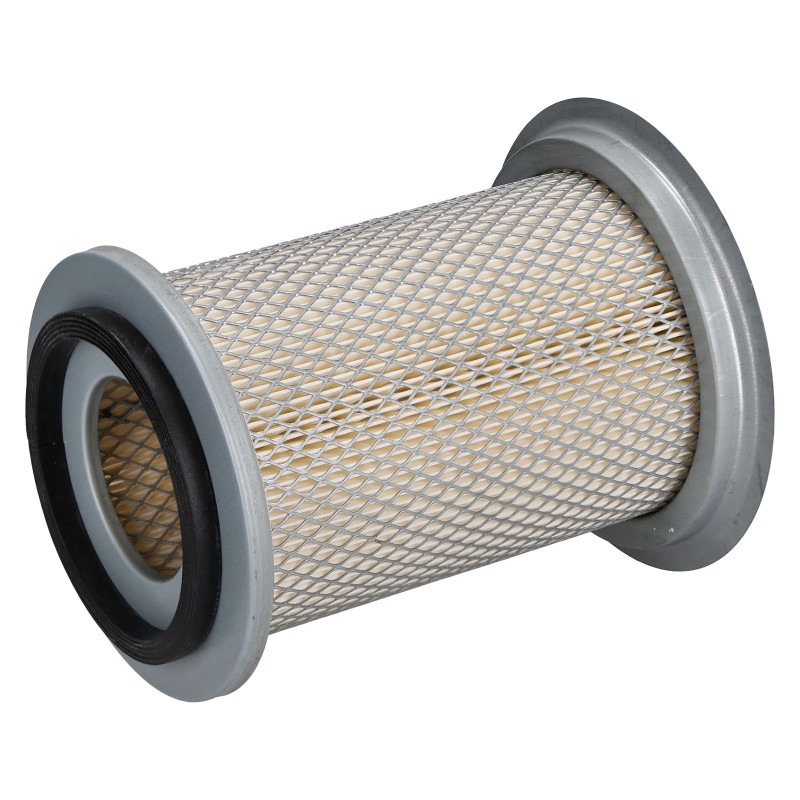

OUTER AIR FILTER SUITABLE FOR JCB - 32/909101

Specification & Compatibility

Product: Outer (Primary) Air Filter
Producer: NEXGEN
Dimensions: Height: 220 mm, Flange Outer Ø: 175/160 mm
Application:
JCB Backhoe Loaders

2CX, 2DX

Other JCB Machines

Telescopic Handlers

Part Number: 32/909101
Part Type: High-quality replacement

Frequently Bought Together

REDX Inner Air Filter (No. 32/909102 - replacing as a set is recommended)
HYPTRON Engine Oil

What does this part do and what are the symptoms of wear?

The outer air filter is the first and most important line of defense for the engine against dust, sand, and other contaminants from the job site. If your machine is emitting black smoke, losing power, and fuel consumption has sharply increased, these are classic symptoms of a clogged air filter. Prolonged operation with a worn filter leads to the destruction of the turbocharger, cylinders, and pistons, ending in a major engine overhaul.

Parameters That Guarantee Reliability

🌬️

Maximum Filtration Efficiency

Protection for engine and turbocharger

💪

Reinforced Construction

Resistant to moisture and vibrations

🎯

Perfect Fit

Guaranteed 100% seal

Why Choose Our NEXGEN Filter?

Precise Manufacturing

The accuracy and quality of materials guarantee long and trouble-free use without the need for frequent replacement.

Compatibility with Original Parts

The filter is fully adapted to work with the inner filter and the original housing, ensuring the integrity and stability of the entire system.

Savings Without Compromise

The NEXGEN brand is a proven and safe alternative that offers filtration quality comparable to original parts at a much better price.

Important Fitting / Service Tips

1.Always Replace Both Filters

The outer (primary) and inner (safety) filters should always be replaced at the same time to ensure complete engine protection.

2.Check the Intake System for Leaks

After replacing the filters, ensure the filter housing is properly closed and all intake hoses are sealed. A leak after the filter means dirty air is entering the engine.

3.Reset the Clogging Indicator

If your machine is equipped with an air filter clogging indicator, remember to reset it after installing new elements.

Frequently Asked Questions (FAQ)

Question: How often should this filter be replaced?

Answer: According to the JCB service manual, typically every 500-1000 operating hours. In very dusty conditions (e.g., demolitions, quarries), the interval should be drastically shortened and the filter status checked regularly.

Question: Can I clean this filter with compressed air?

Answer: This is a temporary and not recommended measure. Compressed air can damage the microscopic pores in the filter paper, which will reduce its effectiveness. The filter should be replaced, not cleaned.

Question: What is the difference between an outer and inner filter?

Answer: The outer filter (this product) captures 99% of larger contaminants. The inner filter (the so-called safety filter) provides additional protection and captures the finest dust that could get through if the outer filter is damaged.

Question mark

If you are unsure whether the selected product is suitable for your machine, contact us and we will help you choose the right part and provide practical advice in minutes.

32/909101B
32/909101
1.00 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
TELESCOPIC HANDLER
OEM NUMBERS
32/909101
ENGINE
PERKINS
OUTER DIAMETER (MM)
160
175
HEIGHT (MM)
220

Specific References

MPN
32/909101
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

External air filter suitable for JCB 2CX 2DX

Catalog number: 32/909101B
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

63.90 zł

net price
51,95 zł
Available in large quantity Temporarily unavailable
51,95 zł
net price

63.90 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 5 points, it gives you 2.00 zł
  • Lowest price from 30 days before the discount: 63.90 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    TELESCOPIC HANDLER
    OEM NUMBERS
    32/909101
    ENGINE
    PERKINS
    OUTER DIAMETER (MM)
    160
    175
    HEIGHT (MM)
    220
